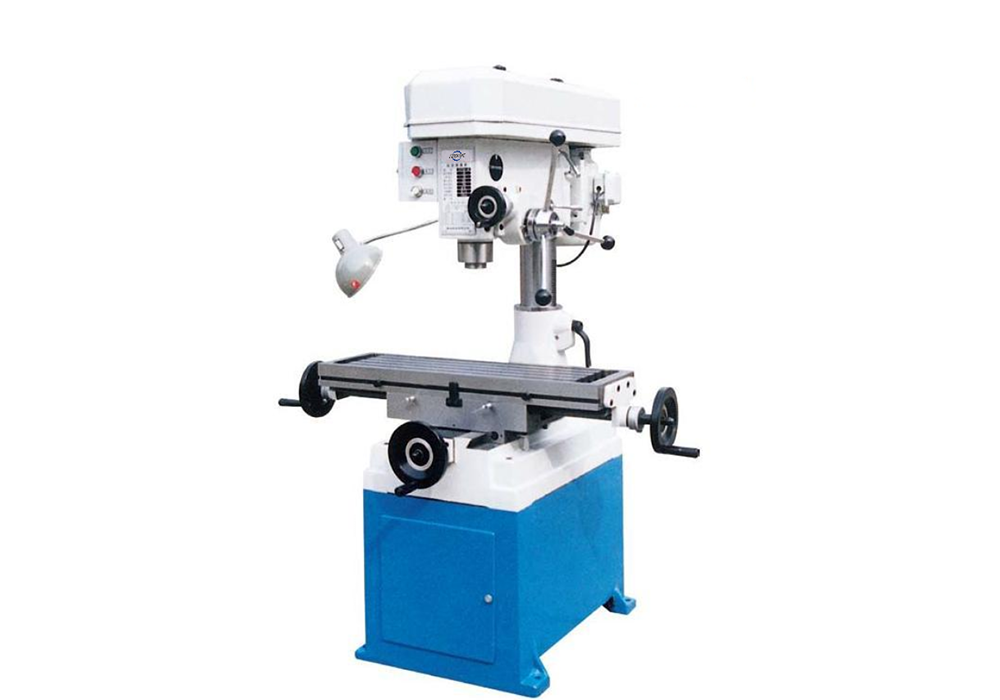

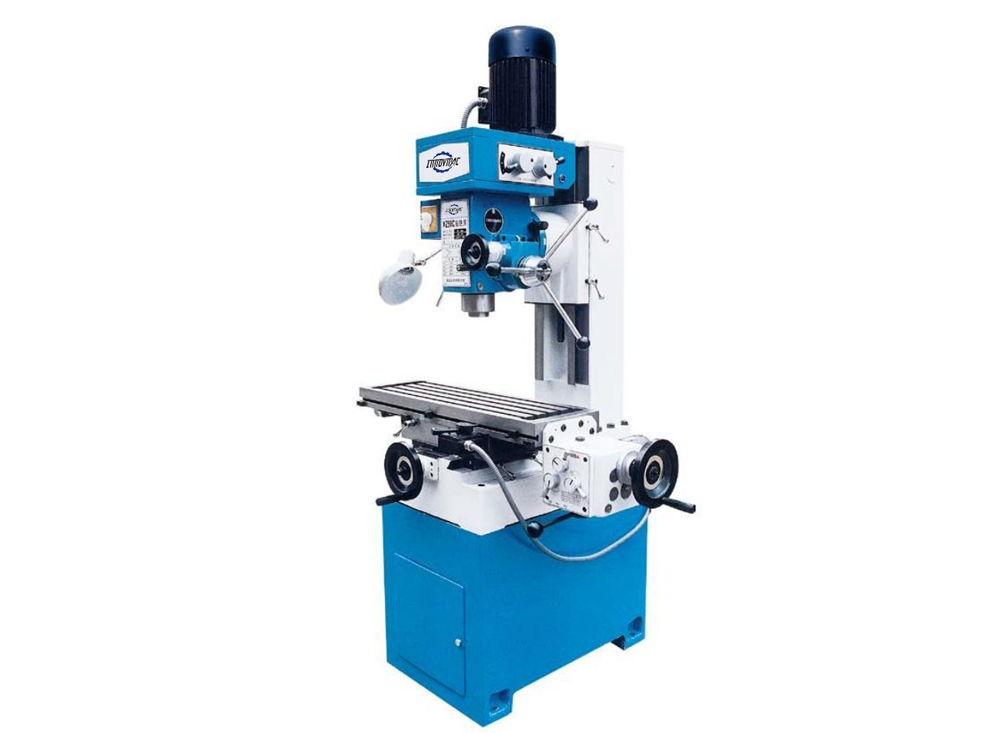

Drilling And Milling Machine
Model | Unit | XZTM-40 | XZ50C |
Table size | mm | 800x240 | 800x240 |
Table travel | mm | 400x215 | 400x215 |
Distance from spindle nose to table surface | mm | 100-530 | 50-410 |
Max drilling dia | mm | 40 | 50 |
Max end milling width | mm | 100 | 100 |
Max vertical milling dia | mm | 18 | 25 |
Max tapping dia | mm | M16 | M16 |
Max horizontal grinding wheel dia | mm | 150 | |
Spindle speed range | rpm | 160-3165 | 115-1750 |
Spindle travel | mm | 120 | 120 |
Overall dimension | mm | 1140x1100x1500 | 1270x950x1800 |
Spindle motor power | kw | 1.5 | 0.85/1.5 |
Machine weight | kg | 410 | 500 |
