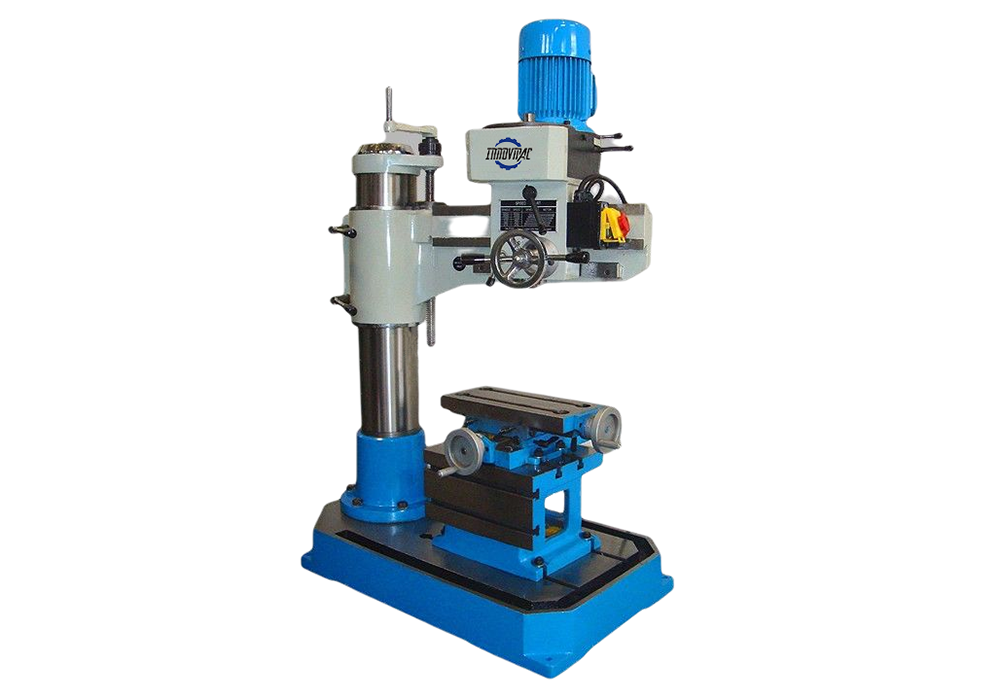

Drilling And Milling Machine
Milling drilling, tapping, boring, reaming ；
Head swivels 360,Micro feed precision ；
super high column,Wide and big table,Gear drive, lower noise。 ；
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;
Model | ZX20 |
Max drilling capacity | 20mm |
Max milling capacity(face end) | 63mm 12mm |
Taper of hole in spindle morse | MT3 |
Max spindle stroke | 90mm |
Spindle speed | 210,380,710,1200,2000rpm |
Power and speed of motor | 0.75kw 910rpm |
Net/gross weight | 350/400kgs |
Packing size | 1130x560x1225mm |
20’Container | 24sets |
