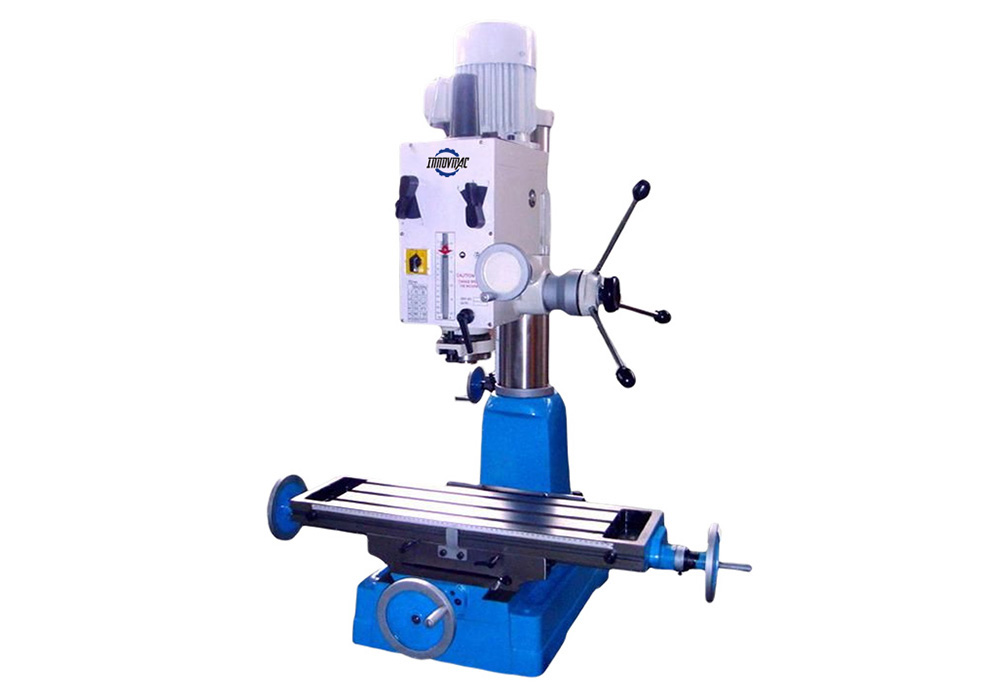

Milling drilling, tapping, boring, reaming ；
Head swivels 360,Micro feed precision ；
super high column,Wide and big table,Gear drive, lower noise。 ；
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun
Optional accessories:
Foot stand+oil pan
Cooling system
Working light
Spindle power down feeder
2 step motor
Worktable power feed system
DRO
depth indicator
spring collet
vices
milling collet
milling clamp
Model | ZX40 |
Max. Drilling dia (Steel/Iron) | 31.5/40mm |
Max.mill capacity(face/end) | 80/32mm |
Spindle taper | MT3/MT4/R8/ISO30 |
Worktable size | 730×210mm |
Worktable travelX/Y | 500/230mm |
Head tilt left right | 90° |
Spindle box swivel degree | 360° |
Spindle travel | 130mm |
Spindle nose to worktable | 470mm |
Spindle speeds(option) | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp |
Motor | 1.1kw |
N.W/G.W | 270/300KG |
Packing size(L×W×H,enclude foot) | 820×760×1150mm |
20'Container | 30 sets |
