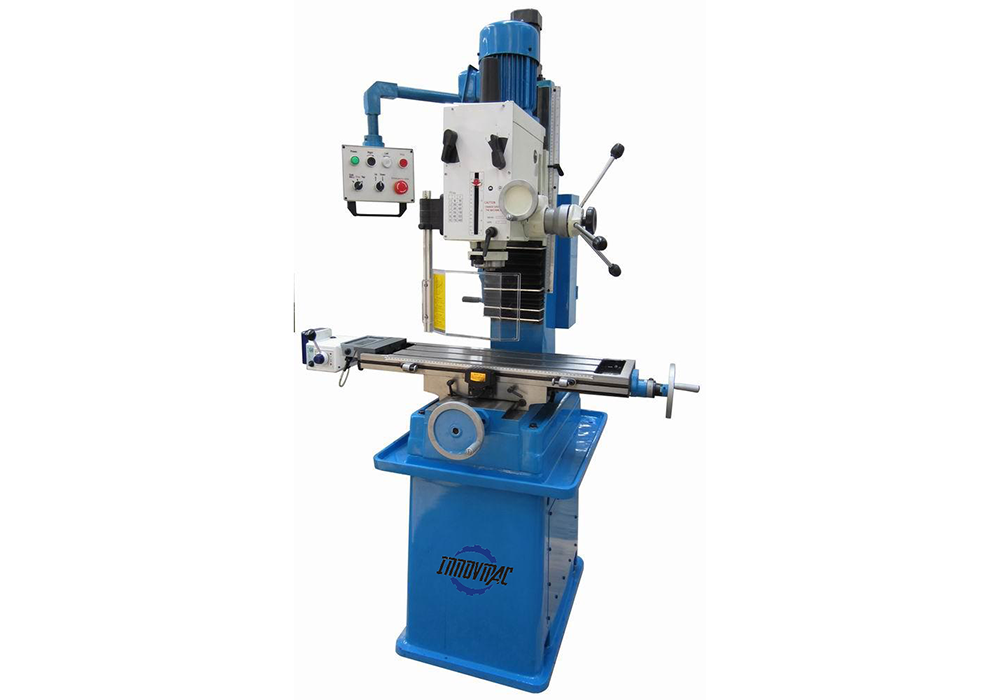

Drilling And Milling Machine
  • FEATURES
  • PARAMETER

ZX7045 not the same as ZX45 ,except that ZX7045 is equipped with:Worktable power feed(longitudinal),Lifting motor with Big Electrical box, 2step motor with 12 steps speed.iron casting foot stand and oil pan which can improve the machining accuracy and producing efficiency.
• Milling drilling, tapping, boring, reaming
• Head swivels 360°
• Micro feed precision
•Superhigh column,Wide and big table,Gear drive, lower noise
•Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table

Standard accessories:

  • Draw bar

  • Adapter

  • Taper shank for drilling chuck

  • Drilling chuck

  • Arbor

  • T slot bolt

  • Washer

  • Nut

  • Tilted wedge

  • Spanner

  • Oil gun

Optional accessories:

  • Cooling system

  • Working light

  • Spindle power down feeder

  • DRO

  • depth indicator

  • spring collet

  • vices

  • milling collet

  • milling clamp.


Model

ZX7045

Max.drilling capacity(iron/steel)

31.5/45mm

Max.mill capacity(face/end)

80/32mm

Spindle taper

MT3/MT4/R8/ISO30

Worktable size

800×240mm

Worktable travelX/Y

570/230mm

Head tilt left right

90°

Spindle travel

130mm

Spindle nose to worktable

470mm

Spindle center to column surface

285mm

Spindle speeds range(2 steps)

12steps:75-3200r/min

Motor

0.85/1.1kw

N.W/G.W

300/350KG

Packing size(L×W×H)

1140×960×2240mm

20’Container

12 sets
