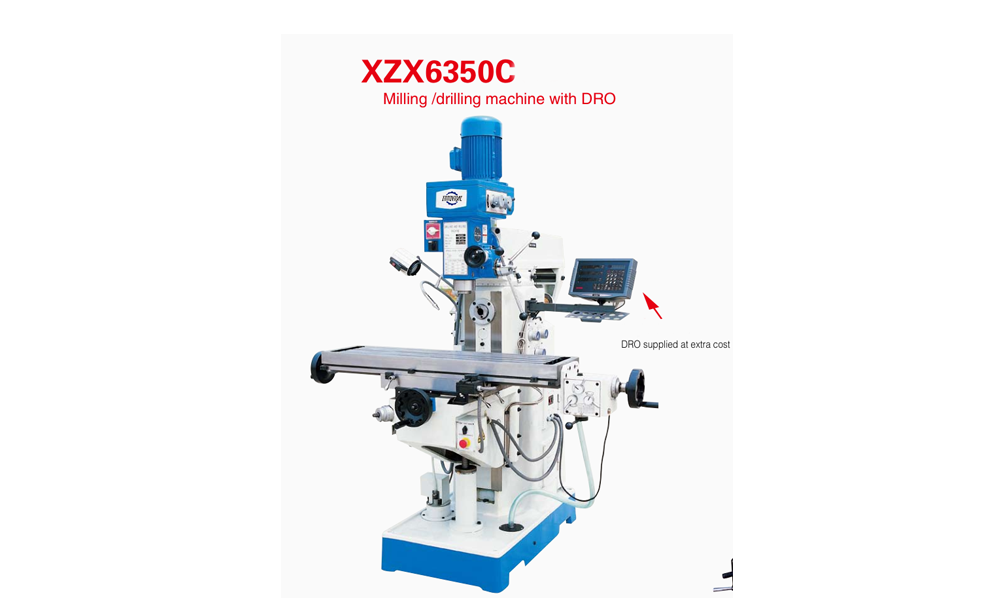

Model | Units | XZX6350C | XZ6350A | XZ6350ZS |
Table size | mm | 1120×280 | 1120×260 | 1270×320 |
Table travel | mm | 600×230 | 600×270 | 730×290 |
Distance from spindle nose to table surface | mm | 110-470 | 100-400 | 120-500 |
Max. drilling dia. | mm | 50 | 50 | 50 |
Max. end milling width | mm | 100 | 100 | 125 |
Max. vertical milling dia. | mm | 25 | 25 | 25 |
Max. tapping dia. | mm | M16 | M16 | M16 |
Spindle speed range | rpm | 115-1750（V）/38-1310（H） | 115-1750（V）/38-1310（H） | 90-2000（V）/60-1350（H） |
Spindle travel | mm | 120 | 120 | 120 |
Overall dimension | mm | 1580×1330×2250 | 1655×1450×2150 | 1680×1640×2200 |
Spindle motor power | kW | 0.85/1.5（V）/2.2（H） | 0.85/1.5(V) 2.2(H) | 2.2 |
Machine weight | kg | 1350 | 1500 | 1650 |
Model | Unit | XZ6350Z | XZ6350ZB |
Table size | mm | 1120×260 | 1120×260 |
Table travel | mm | 600×300 | 600×270 |
Spindle taper | mm | ISO40 | ISO40 |
Max. drilling dia. | mm | 50 | 50 |
Automatic drilling dia. | mm | 14(cast iron) | 14(cast iron) |
Max. vertical milling dia. | mm | 25 | 25 |
Distance from spindle nose to table surface | mm | 100-400 | 100-400 |
Spindle speed range | rpm | 90-2000（V）/38-1310（H） | 90-2000（V）/38-1310（H） |
Spindle travel | mm | 120 | 120 |
Overall dimension | mm | 1520×1285×2150 | 1520×1290×2150 |
Spindle motor power | kw | 2.2 | 2.2 |
Machine weight | kg | 1350 | 1400 |
Model | Units | XZX6350C | XZ6350A | XZ6350ZS |
Table size | mm | 1120×280 | 1120×260 | 1270×320 |
Table travel | mm | 600×230 | 600×270 | 730×290 |
Distance from spindle nose to table surface | mm | 110-470 | 100-400 | 120-500 |
Max. drilling dia. | mm | 50 | 50 | 50 |
Max. end milling width | mm | 100 | 100 | 125 |
Max. vertical milling dia. | mm | 25 | 25 | 25 |
Max. tapping dia. | mm | M16 | M16 | M16 |
Spindle speed range | rpm | 115-1750（V）/38-1310（H） | 115-1750（V）/38-1310（H） | 90-2000（V）/60-1350（H） |
Spindle travel | mm | 120 | 120 | 120 |
Overall dimension | mm | 1580×1330×2250 | 1655×1450×2150 | 1680×1640×2200 |
Spindle motor power | kW | 0.85/1.5（V）/2.2（H） | 0.85/1.5(V) 2.2(H) | 2.2 |
Machine weight | kg | 1350 | 1500 | 1650 |
Model | Unit | XZ6350Z | XZ6350ZB |
Table size | mm | 1120×260 | 1120×260 |
Table travel | mm | 600×300 | 600×270 |
Spindle taper | mm | ISO40 | ISO40 |
Max. drilling dia. | mm | 50 | 50 |
Automatic drilling dia. | mm | 14(cast iron) | 14(cast iron) |
Max. vertical milling dia. | mm | 25 | 25 |
Distance from spindle nose to table surface | mm | 100-400 | 100-400 |
Spindle speed range | rpm | 90-2000（V）/38-1310（H） | 90-2000（V）/38-1310（H） |
Spindle travel | mm | 120 | 120 |
Overall dimension | mm | 1520×1285×2150 | 1520×1290×2150 |
Spindle motor power | kw | 2.2 | 2.2 |
Machine weight | kg | 1350 | 1400 |
