Milling drilling, tapping, boring, reaming ；
Head swivels 360,Micro feed precision ；
super high column,Wide and big table,Gear drive, lower noise。 ；
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun
Optional accessories:
Foot stand +oil pan
Cooling system
Working light
Auto Spindle power down feeder
Lifting motor+Electrical box
table power feed system
DRO
depth indicator
2 speed motor
spring collet
vices
milling collet
milling clamp
Big Electrical box

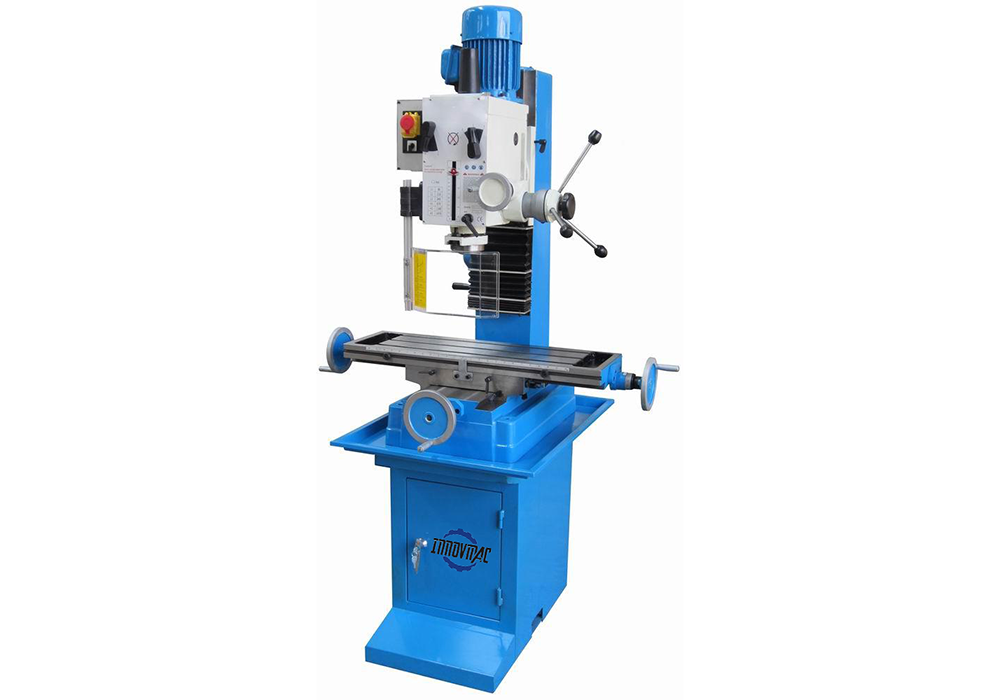

Model | ZX45 |
Max.drilling capacity(iron/steel) | 31.5/40mm |
Max.mill capacity(face/end) | 80/32mm |
Spindle taper | MT3/MT4/R8/ISO30 |
Worktable size | 800*240mm |
Worktable travelX/Y | 570/230mm |
Head tilt left right | 90 |
Spindle travel | 130mm |
Spindle nose to worktable | 470mm |
Spindle center to column surface | 285mm |
Spindle speed(option) | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp |
Motor(option) | 1.1kw |
N.W/G.W | 300/350KG |
Packing size(L*W*H,enclude foot and pan) | 850*760*1150mm |
20’container | 30sets |
