Milling drilling, tapping, boring, reaming ；
Micro feed precision ；
Superhigh column,Wide and big table,Gear drive, lower noise。 ；
Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun
Optional accessories:
2 speed motor
cooling system
Working light
Spindle power down feeder
Table Power feed
Big Electrical box
depth indicator
spring collet
vices
milling collet
milling clamp
DRO(2 aix)

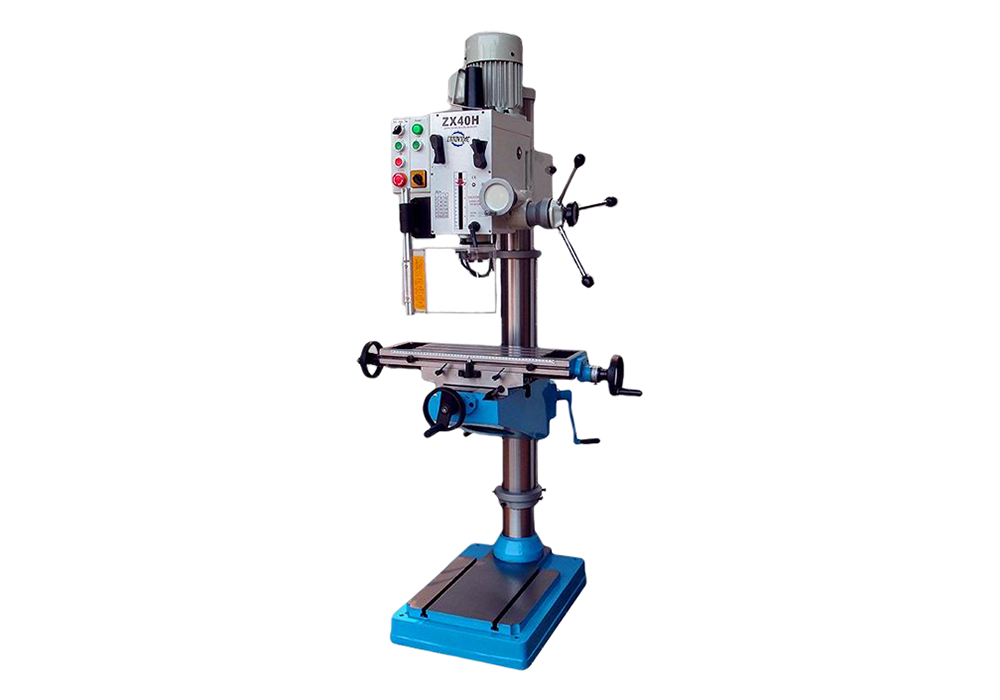

Model | ZX40H |
Max. Drilling dia (Steel/Iron) | 31.5/40mm |
Max milling capacity(Face/End) | 80/32mm |
Spindle taper | MT3/MT4/R8/ISO30 |
Worktable Size | 600×190mm |
Worktable travelX/Y | 370/190mm |
Dimensions of base | 650×450mm |
Spindle travel | 130mm |
Spindle center to column surface | 275mm |
Spindle nose to worktable | 610mm |
Spindle nose to base | 1180mm |
Diameter of column | 115mm |
Spindle speed(option ) | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp |
Motor | 1.1kw |
N．W/G.W | 350/400KG |
Packing size(L×W×H)mm | 820×720×1830mm |
20′Container | 21sets |
