Milling drilling, tapping, boring, reaming ；
Micro feed precision ；
Superhigh column,Wide and big table,Gear drive, lower noise。 ；
Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table
Standard accessories:
Draw bar
Adapter
Taper shank for drilling chuck
Drilling chuck
Arbor
T slot bolt
Washer
Nut
Tilted wedge
Spanner
Oil gun
Optional accessories:
Worktable auto up-down system
depth indicator
spring collet
vices
milling collet
milling clamp

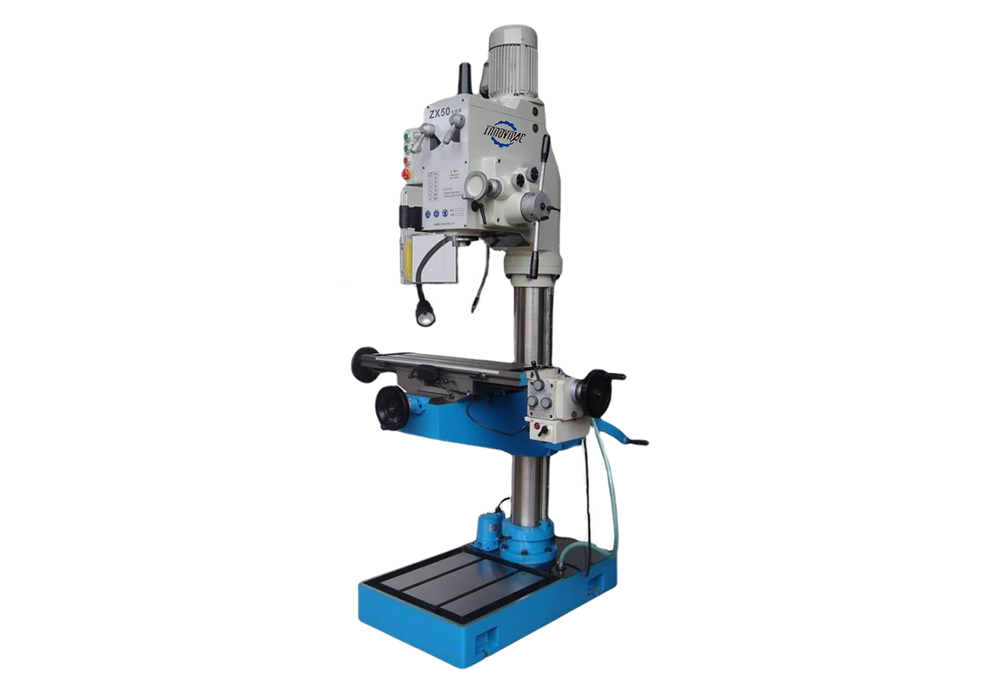

Model | ZX50 |
Max.drilling capacity(iron/steel) | 60/50mm |
Max.mill capacity(face/end) | 100/32mm |
Max.tapping capacity | 33mm |
Spindle taper | MT4 |
Worktable size | 800×240mm |
Worktable travelX/Y | 500/280mm |
Dimensions of base | 940×580mm |
Column diameter | 160mm |
Quill diameter | 100mm |
Spindle travel | 210mm |
Spindle center to column surface | 350mm |
Spindle nose to worktable | 700mm |
Spindle nose to base | 1290mm |
Spindle Speed (R.P.M.) | 60Hz 60~1810 50Hz 50~1510 |
Spindle power feed | 0.1-0.2-0.3-0.4mm (per/rev) |
Cooling motor | 60W |
Motor | 3kw |
N．W/G.W | 830/880KG |
Packing size(motor is dismantled) | 1010×1200×2134 mm |
20' Container Q'ty | 15 sets |
